LM2587S DC-DC boost step up converter 3-35V DC to 4-40V DC module

Regular price $20.00

Input: 3V - 35V
Output: 4V - 40V adjustable
Efficiency: 94% (MAX)
Module size: 37mm x 32mm x 15mm (L x W x H)
Operating temperature: -40 ℃  -  85 ℃

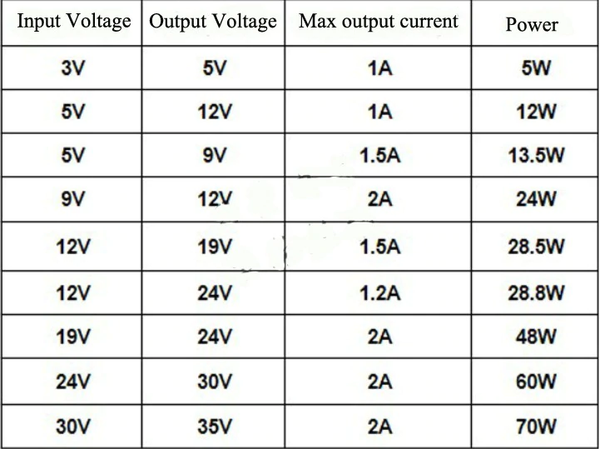

Load capacity: 80W (MAX)
Note: The smaller the voltage difference between input and output voltage is, the greater the load capacity is, the higher the efficiency is.
