MAX6675, HW-550 K type thermocouple temperature module

Regular price $35.00

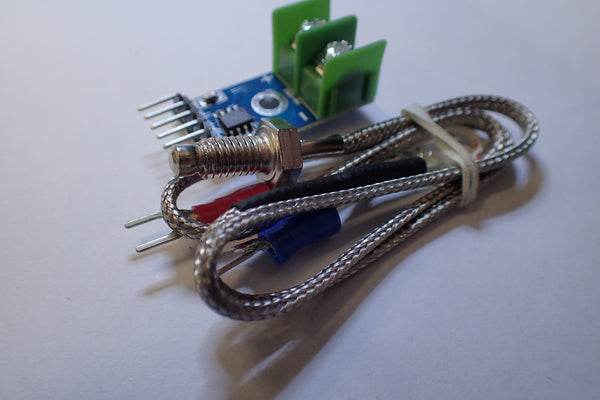

The MAX6675 Thermocouple Temperature Module is a K-Type thermocouple with digital converter that has a range of 0°C up to 80°C with the supplied thermocouple and up to 1024°C with a suitable high temp thermocouple.

  • Module uses MAX6675 IC which can handle readings from 0°C to 1024°C
  • Supplied thermocouple probe rated for up to 80°C with 1/4″ -20 threaded tip
  • 0.25°C resolution, ±3°C accuracy
  • Uses 3-wire SPI interface
  • 3 – 5.5V operation
