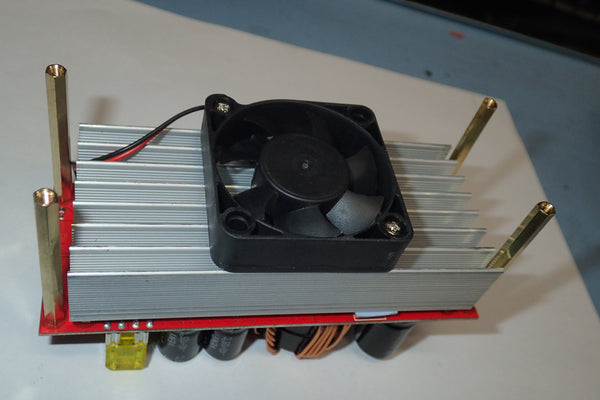

DC-DC Boost converter Step Up Power supply module 1500W 30A

Module nature: non-isolated boost module (BOOST)

Input voltage: DC10-60V

Input current:

• 10-30V input voltage, maximum current 30A

•  31-60V input voltage, maximum current 25A

Static working current: 15mA (12V liters 20V, the higher the output voltage, the static current will increase)

Output voltage:

• 12-90V continuously adjustable (default output is adjusted to 19V)

• 12-90V fixed output

Output current: 20A MAX More than 15A, please strengthen the heat dissipation (related to the input and output voltage difference, the larger the differential pressure, the smaller the output current)

Constant current range: 0.8-20A (+/-0.3A)

Input anti-reverse connection: Yes (150A power MOS anti-reverse)

Low battery protection: self-recovery (8-50V adjustable)

Working temperature: -40~+85 degrees (enhance heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency: 92%-97% (efficiency is related to input, output voltage, current, differential pressure. Low differential pressure)

Input overcurrent protection: Yes (input over 35A, automatic protection, power does not boost)

Short circuit protection: Yes (input 30A fuse) Double short circuit protection, safer to use.

Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)

Installation method: 43mm copper columns

Wiring method: terminal block (please use high current pure copper wire)

Module size: length 130mm x 52mm x 84mm

Module weight: 490 grams
