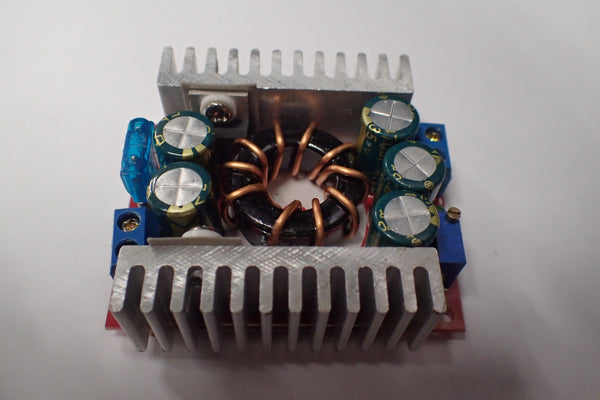

DC/DC 15A Buck Adjustable 4-32V 12V to 1.2-32V 5V Converter Step Down Module 150khz

Regular price $45.00

Adjustable step down voltage regulator module.

Input voltage: DC 4-32V (limit 36)
Output voltage: DC 1.2-32V continuously adjustable
Minimum differential pressure input and output: 1V
Output current: 0-15A 10A long natural cooling, the temperature does not exceed 60 degrees, the peak of up to 20A. Decrease the amount of higher ambient temperatures use
Operating temperature: -40 to +85 degrees
Operating frequency: 150KHz
Conversion efficiency: up to 98% (efficiency and input and output voltage, current, pressure related)
Short circuit protection: yes (limit current 25A) input fuse is 15A
Over-temperature protection: yes (over-temperature automatically reduce the output current)
Size: 60*51*22mm(length*width*hight)
