12V delay relay Turn on / Turn off module

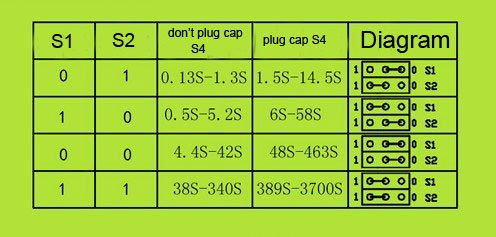

1. With 8 time ranges selected shortest 0.1s most up to 1 hour
2. Protection against power reversal protection diode, better protection module
3. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)
4. With delay adjustment potentiometer clockwise adjustment time longer
Function:
Plug On S6 ,delay turn off
plug on s7, delay turn on
Electrical parameter:
Input voltage: 12V
Quiescent dissipation: 5.5mA
Maximum power consumption 42mA
1. With 8 time ranges selected shortest 0.1s most up to 1 hour
2. Protection against power reversal protection diode, better protection module
3. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)
4. With delay adjustment potentiometer clockwise adjustment time longer
Function:
Plug On S6 ,delay turn off
plug on s7, delay turn on
Electrical parameter:
Input voltage: 12V
Quiescent dissipation: 5.5mA
Maximum power consumption 42mA
