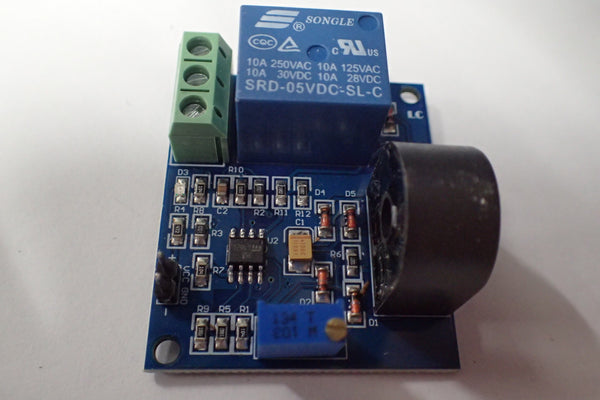

AC sensor relay, current detection module 0-5A
$40.00
*Dimensions: Length 40mmX width 38mm.
*The main chip: operational amplifiers, transformers.
*Operating voltage: DC 12V.
Features: *Output: Switch output.
*Current detection range: AC 0-5A.
*Current detection resolution can change the resistance parameter settings.
*Output over-current switch signal output.
*Over-current signal is adjustable to set the critical point, set the resolution 0.2A.
*With mounting holes for easy firmware installation.
*Applications: AC current equipment such as motor overcurrent detection, stall protection, short circuit protection testing, demonstration teaching experiments and so on occasion, to facilitate the secondary development; suitable for different loads, including inductive load, capacitive load, resistive load testing.
