2.4GHz E01-ML01DP5 22dBm nRF24L01P+PA+LNA Wireless Transmission Module Shield Case Module 100mW

Regular price $45.00

Module Size: 18*33mm
interface method: 2*4*2.54mm(can use universal board or Dupont Line)
Power Supply: 2.0V——3.6VDC
Measured distance: 2500m
Communications levels: 0.7VDD——5.2VDC
Maximum power: 20dBm(about 100mW)

Gbps: 250k,1M,2M, Adjustable
Emission current: 95mA
Sinks current: 20mA

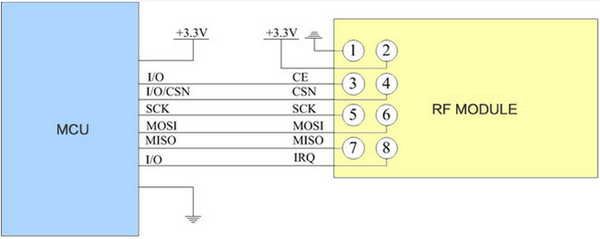

Communication interface: Standard SPI mode
Transceiver length: single packet: 1—32 bytes, 3 FIFO buffer
RSSI support: Does not support the true meaning of RSSI, Only supports packet loss statistics.
Working temps: -30℃~+85℃

Working Humidity: <90% RH
Storage Temp: -40℃~+125℃
Operating frequency: 2400MHz-2525MHz(1MHz step )
Receiving Sensitivity: -106dBm@250Kbps -96dbm@1Mbps -92dbm@2Mbps
