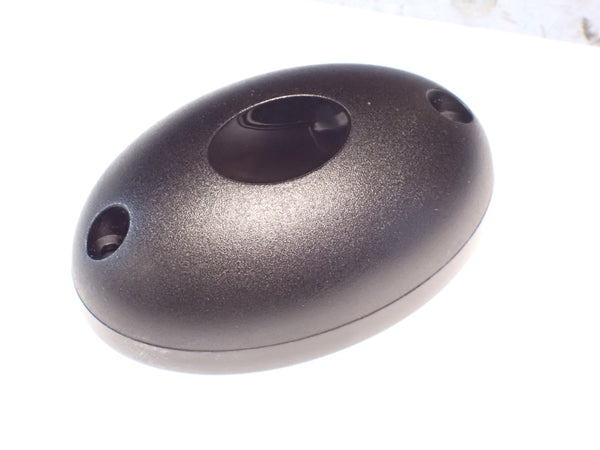

IP55 Single Infrared beam sensor

Regular price $98.75

Model: single beam

Waterproof grade: IP55

Temperature: +45~ (-20)

Dimensions: 49.2 x 76 x 21.6MM

Waterproof and UV resistant

Detector sensing length: indoor 20m outdoor 15m

Working voltage: 12VDC24VDC

Maximum current: TX: 15maMAX RX: 30maMAX

Light source: infrared pulse

Infrared wavelength: 940nm

Infrared emission frequency: 1.92KHz

Response speed: 50ms

Alarm output time: ≥ 1 second

Detection method: block infrared beam

Ideal for installation in security systems in schools, office buildings, hospitals, home yard garage doors, and more.
