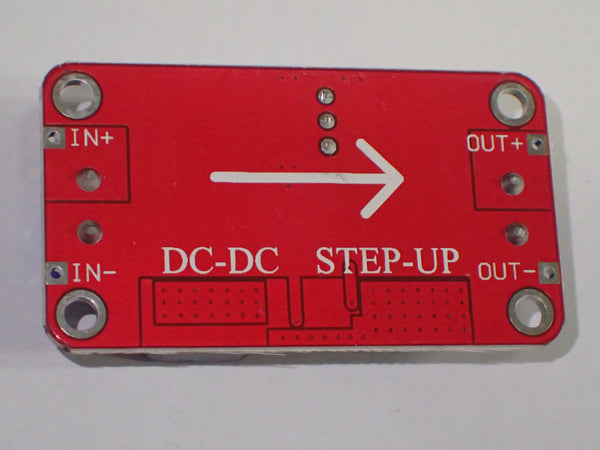

XL6019E1 DC-DC boost step up converter Buck-boost Module 5V-32V to 1.2V-35V 1.5A 20W

Regular price $15.00

  • Input voltage: 5-32V
  • Output voltage: continuously adjustable (1.2-35V)
  • Output current: 1.5A (MAX)
  • Input current: 4A (MAX)
  • Output power: natural cooling 20W, plus heat sink 25W (MAX) actual power
  • Maximum output power = input voltage *4A* conversion efficiency
  • Output Ripple: Input 12V Output 24 0.5A Ripple 30MV 20M Bandwidth (for reference only)
  • Operating temperature: Industrial grade (-40°C to +85°C) (Environmental temperature exceeds 40°C, please reduce power usage or enhance heat dissipation)
  •  Full load temperature rise: 45°C
  • Working frequency: 400khz
  • No-load current: typical 15mA (5V to 12V)
  • Load regulation: ±0.5%
  • Voltage regulation rate: ±0.5%
  • Dynamic response speed: 5% 200uS
